会社でSRX100を購入したのですが、Juniper製品の設定は初めてでハマってて自宅でいろいろ試してました。
とりあえず自宅での接続は全部うまくいったので、会社用にこれから設定を変えていってみようと思います。

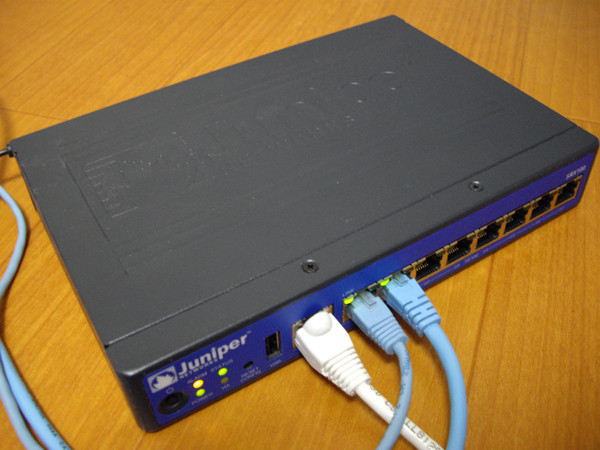

ポート0/0にONUからのLANケーブル、ポート0/1にスイッチングハブへのケーブルをつないでます。
グローバルIPアドレスあり、PPPoEでのインターネット接続。
JUNOSは10.4R1.9にアップグレード済み。
以下の設定は、セキュリティを全く考慮してないです。
root@ebisu-srx100> show configuration | no-more ## Last commit: 2011-02-11 14:10:33 JST by root version 10.4R1.9; system { host-name ebisu-srx100; time-zone Asia/Tokyo; root-authentication { encrypted-password "rootのパスワード"; ## SECRET-DATA } name-server { 8.8.8.8; ## google public dns 8.8.4.4; } services { ssh; telnet; web-management { http { interface vlan.0; } https { system-generated-certificate; interface vlan.0; } } dhcp { router { 192.168.1.1; } pool 192.168.1.1/24 { address-range low 192.168.1.2 high 192.168.1.145; } propagate-settings fe-0/0/1.0; } } ntp; } interfaces { interface-range interfaces-trust { member fe-0/0/1; member fe-0/0/2; member fe-0/0/3; member fe-0/0/4; member fe-0/0/5; member fe-0/0/6; member fe-0/0/7; unit 0 { family ethernet-switching { vlan { members vlan-trust; } } } } fe-0/0/0 { unit 0 { encapsulation ppp-over-ether; } } lo0 { unit 0 { family inet { address 127.0.0.1/32; } } } pp0 { unit 0 { ppp-options { pap { default-password "インターネット接続用のパスワード"; ## SECRET-DATA local-name "インターネット接続用のID"; local-password "インターネット接続用のパスワード"; ## SECRET-DATA passive; } } pppoe-options { underlying-interface fe-0/0/0.0; idle-timeout 0; auto-reconnect 120; client; } family inet { mtu 1454; negotiate-address; } } } vlan { unit 0 { family inet { address 192.168.1.1/24; } } } } routing-options { static { route 0.0.0.0/0 { next-hop pp0.0; metric 0; } } } security { nat { source { rule-set trust-to-untrust { from zone trust; to zone untrust; rule source-nat-rule { match { source-address 0.0.0.0/0; } then { source-nat { interface; } } } } } static { rule-set untrust-static-nat { from zone untrust; rule static-nat-rule { match { destination-address xxx.xxx.xxx.xxx/32; ## 自宅のグローバルIP } then { static-nat prefix 192.168.1.200/32; ## 自宅サーバ } } } } } zones { security-zone trust { host-inbound-traffic { system-services { all; } protocols { all; } } interfaces { vlan.0; } } security-zone untrust { host-inbound-traffic { system-services { all; } protocols { all; } } interfaces { fe-0/0/0.0; pp0.0; } } } policies { from-zone trust to-zone untrust { policy trust-to-untrust { match { source-address any; destination-address any; application any; } then { permit; } } } from-zone untrust to-zone trust { policy untrust-to-trust { match { source-address any; destination-address any; application any; } then { permit; } } } } flow { tcp-mss { all-tcp { mss 1414; } } } } vlans { vlan-trust { vlan-id 3; l3-interface vlan.0; } }
ところで内部向けのDNSをうまくできないかな。
